These heaters are used to suck the warm air from the pitch of the roof through a hot water heat exchanger to floor level, providing a more uniform temperature throughout the broiler house.

Watch the video on YouTube

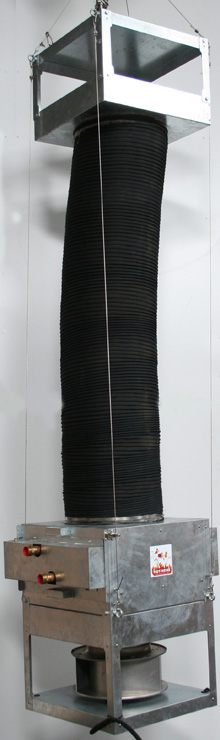

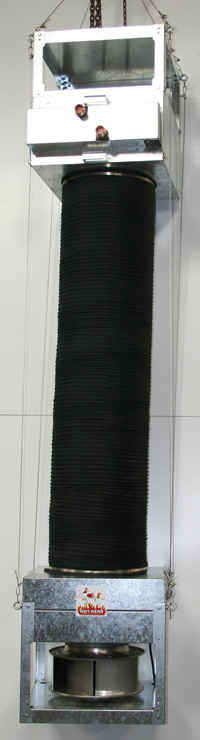

There are 2 versions – one with the heat exchange coil mounted at the top and one with the heat exchange coil at the bottom. Figure 1 shows the roof mounted version and Figure 2 shows the bottom mounted version.

In both cases the coil can be removed for cleaning

In both cases the units can be operated with 85°C or 55°C water. Table 1 details the kW heating provided.

In both cases the EBM 400mm 380v 50hZ fan can be wired in STAR or DELTA, depending on the width of the broiler house

Table 1

Water Supply Temp °C

∆T

K

Fan Speed RPM

kW

55°C

5K

1415

27.3

55°C

5K

1235

24.7

85°C

10K

1415

45.5

85°C

10K

1235

41.1
All capacities at 10°C ambient air

Download the PDF info sheet

      Figure 1                             Figure 2
